Kohler K-26341
Anthem, Three-port thermostatic mixing valve
This valve is ideal for applications where three shower outlets are required, offering two different temperature and flow zones. Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Its easy plug-and-play design makes installation a breeze. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve.
Required items sold separately
This valve is ideal for applications where three shower outlets are required, offering two different temperature and flow zones. Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. As an extra safety feature this valve has antiscald protection.
Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Its easy plug-and-play design makes installation a breeze. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve.
Required items sold separately
- High-flow thermostatic mixing valve.
- Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience.
- Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with a maximum flow of 7 gpm (26.5 lpm) from one outlet.
- ¾" female NPT inlet connections.
- ½" female NPT outlets.
- Service stops with integral filters.
- Antiscald protection.
- Integrated adjustable high-temperature limit stop to control maximum water temperature.
- Adjustable comfort setting (preset at approximately 104°F).
- Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.
- Cast dezincification-resistant brass body provides long-term reliability and resistance to aggressive water conditions.
- Requires three-outlet thermostatic valve control panel trim with recessed push buttons (sold separately).
- Mounts within standard 2" x 4" (38 x 102 mm) walls.
- Fully serviceable from the front of the valve.
- Anthem Three-port thermostatic valve with volume control
| Model | K-26341 |
|---|---|
| Mount | Wall |
| Material | Cast dezincification-resistant brass body |
| Inlet Connection | 3/4" Female NPT |
| Outlet Connection | 1/2" Female NPT |
| Flow Rate | 8 GPM |
| Width | 13-15/16" |
| Depth | 7/8" |
| Height | 6-1/8" |

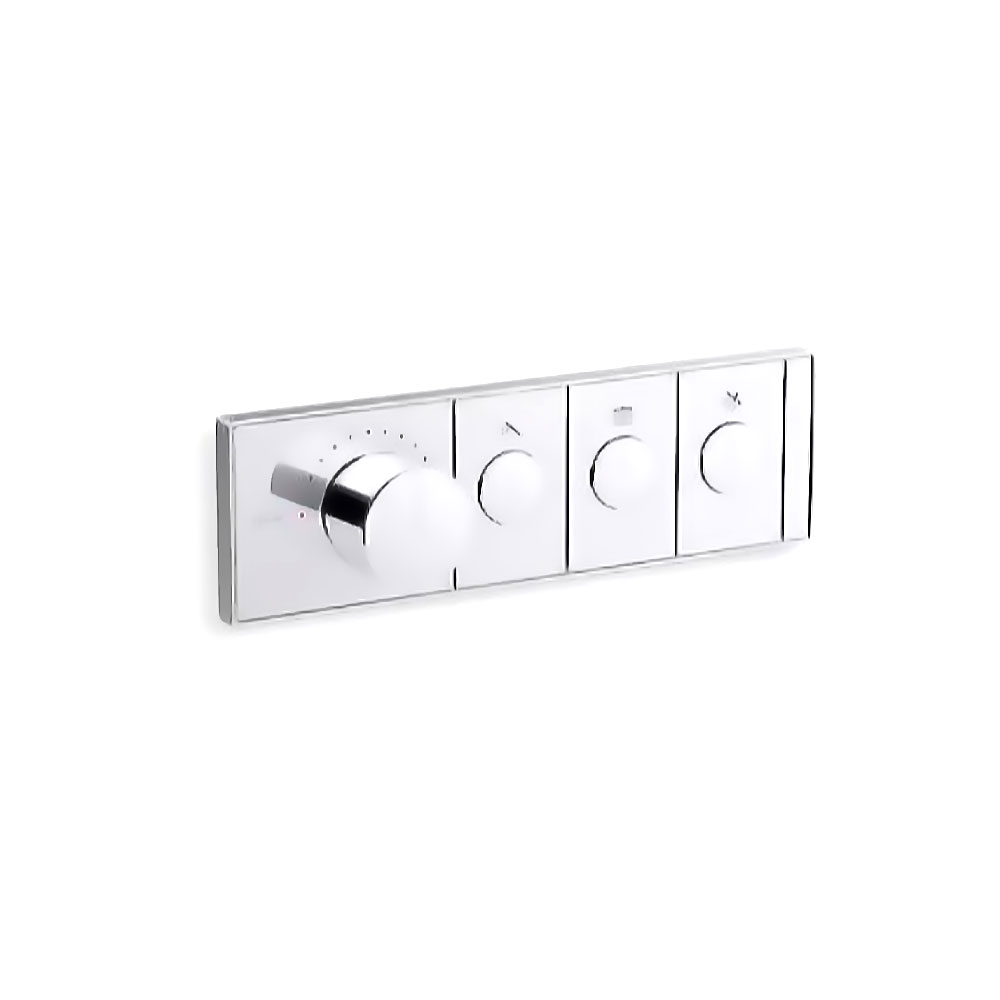

This streamlined thermostatic valve control panel with recessed push buttons is designed for use with an Anthem three-port thermostatic valve (K-26341). The decorative trim plate includes a temperature control with integrated adjustable high-temperature limit stop as well as a shower outlet activation buttons that pop out in order to let you adjust the water flow (up to 8 gpm). Thermostatic technology allows you to sustain a steady temperature and flow control for a flawless shower experience.
Required items sold separately
