Kohler K-28212
Anthem Six-port digital thermostatic valve
This valve is ideal for applications where six shower outlets are required, offering two different temperature and flow zones. Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Its easy plug-and-play design makes installation a breeze. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve.
Required items sold separately
This valve is ideal for applications where six shower outlets are required, offering two different temperature and flow zones. Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. As an extra safety feature this valve has antiscald protection.
Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Its easy plug-and-play design makes installation a breeze. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve.
Required items sold separately
- Digitally controlled thermostatic mixing valve.
- Antiscald protection.
- Built-in temperature and flow control.
- Allows for two different temperature and flow zones in your shower.
- Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.
- Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with a maximum flow of 9.5 gpm (36 lpm) from one outlet.
- Six independently controllable ½" outlets with brass tube connections.
- 3/4" inlets with brass tube connections.
- Reinforced engineering-grade thermoplastic body.
- Mounts within standard 2" x 4" (38 x 102 mm) walls.
- Install valve approximately 32' (9754 mm) away from the digital control (cable supplied with control).
- Prewired with two-prong plug for connection to 120v GFCI receptacle.
- Anthem Six-port digital thermostatic valve
- Filter Screens (2)
- Jumper
- Mounting Hardware
- Power Supply Unit
| Model | K-682-K |
|---|---|
| Construction Material | Reinforced engineering-grade thermoplastic body |
| Mount | Wall |
| Voltage | 120V |
| Amperage | 1.0 Amps |
| Hertz | 60Hz |
| UL Rated | Yes |
| NPT Inlet | 3/4" |
| NPT Outlet | 1/2" |
| Width | 21-1/8" (537mm) |
| Depth | 9-1/16" (230mm) |
| Height | 3" (76mm) |

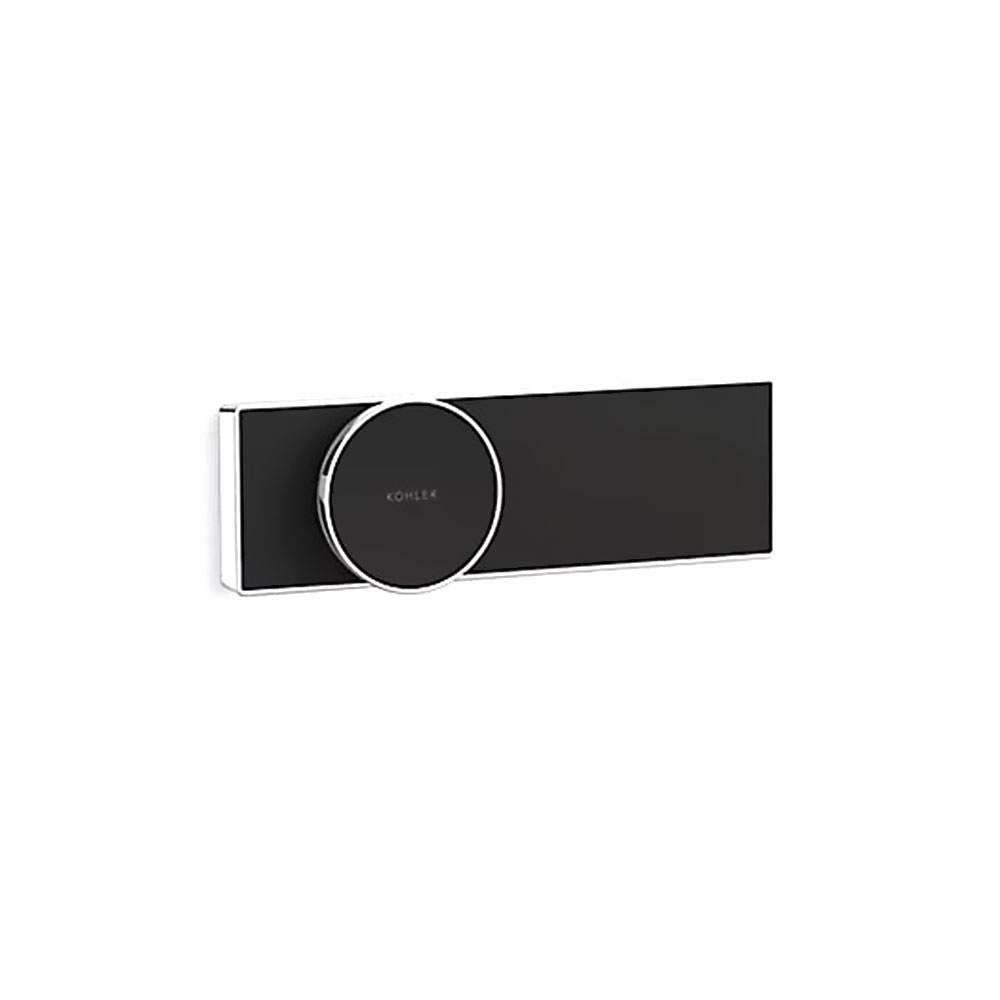

The advanced Anthem digital control gives you the power to customize your shower experience to make your dreams reality. The silky, minimalist display lets you configure and control your outlets, temperature, and flow. Eco mode is an optional built-in feature to help you conserve water and the summary screen promotes mindful water usage.
Required items sold separately
