Kohler K-682-K
DTV Series, 6 Port Thermostatic Valve
For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control and is used with DTV+. With six independently controllable outlet ports, this valve is ideal for any custom showering application and can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.
For DTV+ systems, K-97172 DTV+ data cable is required (sold separately).
For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control and is used with DTV+. With six independently controllable outlet ports, this valve is ideal for any custom showering application and can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.
When used with DTV+ systems, K-97172 DTV+ data cable is required (sold separately).
- Digitally controlled thermostatic mixing valve.
- For use with DTV+ system.
- Anti-scald protection.
- Six independently controllable 1/2" NPT outlets.
- 3/4" NPT inlets.
- Maximum flow rate of 21 gpm (10 gpm maximum flow from one outlet).
- Includes filter screens.
- Crossflow prevention.
- High-temperature limit setting for additional protection.
- Suitable for use in either showering and/or bathing applications.
- Can be mounted within a standard 2x4 wall cavity.
- 5 year limited warranty
- 6 Port Thermostatic Valve
- 110 V AC power supply
- 5 year limited warranty
| Model | K-682-K |
|---|---|
| Construction Material | Brass |
| Mount | Wall |
| Voltage | 120/240V |
| Amperage | 1.5 Amps |
| Hertz | 50/60Hz |
| UL Rated | Yes |
| NPT Inlet | 3/4" |
| NPT Outlet | 1/2" |
| Width | 20-1/8" (511mm) |
| Depth | 7-3/8" (187mm) |
| Height | 3-5/16" (84mm) |
DTV+ is Kohler's most advanced showering system, making your bathing experience fully immersive. Using water, steam, lighting, and music to give you multi-sensory relaxation. Each elemental component can be personalized for your needs and a simple touchscreen interface controls it all. The DTV+ system requires one interface, at minimum, a K-99694 mounting bracket, and the K-99695 system controller.
Required items sold separately
Use this wall-mount bracket for mounting your DTV+ digital interface. The bracket comes in multiple finishes in order to harmonize with the decor and vision of your shower space. In order to maximize location flexibility and provide ease of installation this mounting bracket is surface mount.
Required items sold separately

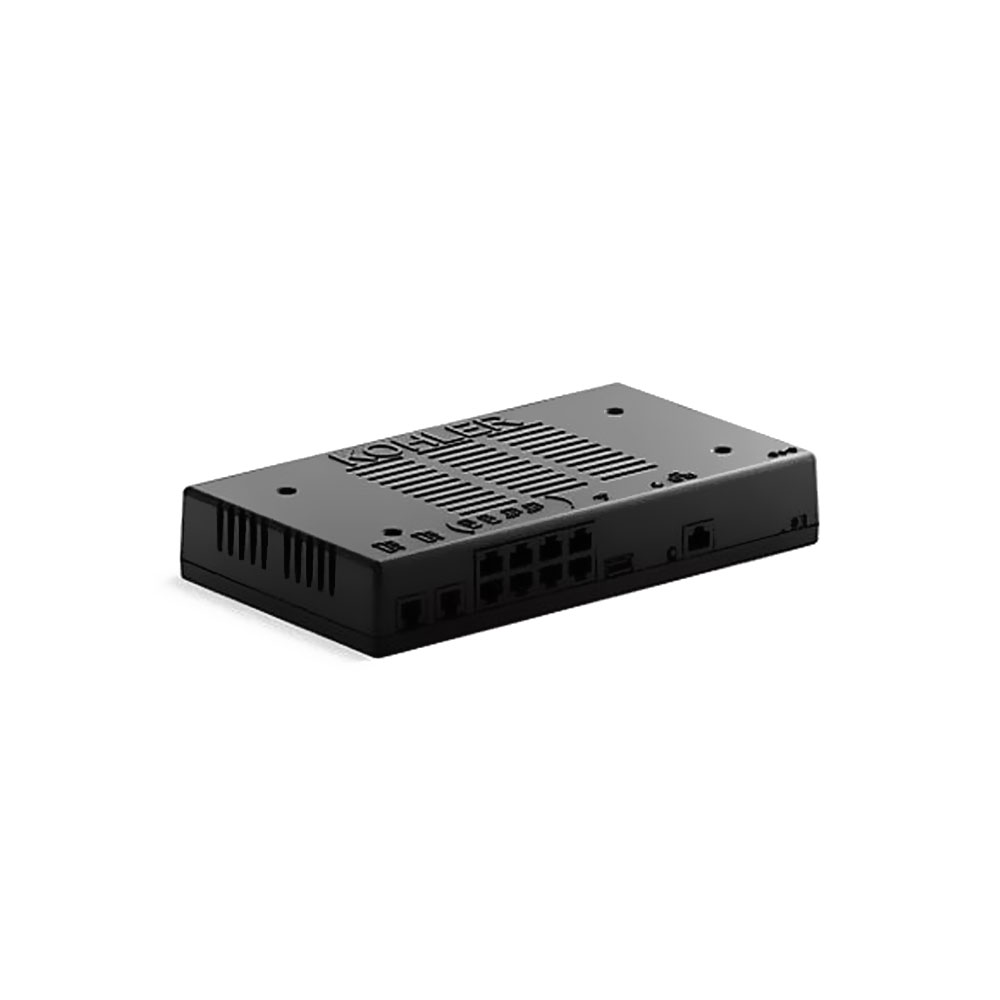

The DTV+ system controller acts as the wiring center and "brain" for the DTV+ showering system, providing connections for every component and powering the digital interfaces. Every DTV+ system, at a minimum, requires one K-99693 interface, a K-99694 mount
Required items sold separately
