Lattner H.E. MINIATURE 7
SteamEase Series Gas Steam Bath Boiler, 7HP
The Lattner H.E Miniature 7 Gas Steam Bath Boiler provides high efficiency with low maintenance and is engineered to power steam rooms up to 2,800 cubic feet (CF). Includes a digital operating control package for single or dual room application. Low-NOx option is available.
Designed for the most demanding commercial steam room environments, this SteamEase Series boiler system operates under pressure and is capable of steaming rooms (1-2) up to a total of 2,800 cubic feet. Complete with McDonnell Miller Level control and low water cut-off, probe-type auxiliary low water cut-off, operating pressure switch, high limit pressure switch, safety relief valve, blowdown valves for boiler and level controls, main steam stop valve, feedwater stop and check valves, water gauge set and draft diverter, UL approved and listed, factory wired for 120/1/60. ASME Code and National Board stamped.
Consider the highly recommended 1674-B Automatic Blowdown System for automated on/off and drain capabilities.
NOTE: Installation should be in accordance with local and national codes. ASME Piping & Hydrostatic test w/P-6 Data Report may be required in some states including AZ, CO, IA, IN, KY, NE, OH, VA, WI. Low-NOx equipment may be required in some areas including TX and much of CA.
- Economical atmosphere burners
- Internal scale syphon blowoff pipe
- Two low water cut-offs, alarm capability
- Three manual alarm resets
- Flame operation safeguard
- National board registered vessel
- ASME low-pressure operation compliance
- Operating, hi-limit, and ASME safety valve pressure control systems
- UL listed and built to ASME code
- Steam Boiler
- Digital Room Temperature Controller, Single or Dual
- Waterproof Sensor with Shield Per Room
- Steam Solenoid Valve Per Room
- Steam Heads Per Room (2)
- Factory-Installed Feedwater Solenoid Valve
- Installation and Operation Manual
| Model | H.E. MINIATURE 7 |
|---|---|
| Minimum Cubic Feet | 2000 |
| Maximum Cubic Feet | 2800 |
| Kilowatt Rating | 7 HP |
| Shipping Weight | 1225 lbs |
| Water Supply Connection | 1" NPT |
| Generator Steam Line Connection | 1 1/4" NPT |
| Width | 33" |
| Depth | 43" |
| Height | 81 1/2" |
The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project's success.
Traps debris from entering into the steam solenoid.
Extending life of the steam solenoid's internal parts.
Helps prevent blockage of valve leading to overheating of room.
- Available in 1/2", 3/4" and 1"
- Threaded FPT x FPT
- Stainless Steel Screen
- Steam Rated
Noise reduction & more fog by reducing the flow rate with the Throttling Valve.
- Available in 1/2", 3/4" and 1"
- Threaded FPT x FPT
- Bronze Seat
- Steam Rated
- Multi-Turn Operation
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.
Automatic Drain Valve to blow down boiler flushing debris. Helps prevent build-up of minerals and keeps water lines open.
See Shipping Tab

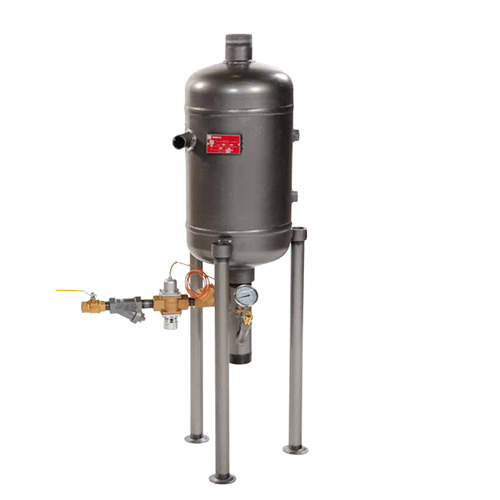

The Lattner 810 Blowdown Separator safely reduces the discharge pressure for external venting to a maximum of 5 PSI.
See Shipping Tab
The Lattner 205 Aftercooler reduces the temperature of boiler discharge to meet or exceed local and national standards.
See Shipping Tab
This is the replacement thermometer for the blowdown separator.
See Shipping Tab
The simplest way to clean your equipment. No tools, no elbow grease; just pour it in, turn on the heat and let it work for you. An important part of any routine maintenance program for your steam unit or any equipment where scale or lime may build up.
A cleaner specially formulated for steam showers!
No mixing and ready to use, this 22-ounce convenient spray cleaner is all that is required to clean and sanitize your steam shower.
A cleaner specially formulated for steam rooms! This economical concentrate makes up to four gallons.
This powerful disinfectant cleaner kills mold, mildew and odor-causing fungi on contact.
