Bathology Spectrum 440

Steam & Sauna Room / LED Lighting System, Single Zone

Model
Spectrum 440

Shower your bathing space with a customizable array of natural white lights from Bathology!

MSRP
$353.06
Your Price
$317.75

Ambiance
Ideal for use inside steam showers and wet areas where waterproof lighting is required, these distinctive, flush-fitting LED light fixtures will intensify your bathing enjoyment while providing elegant luminosity. One system can power from 1 to 11 lights, giving you the flexibility to cost-effectively produce the perfect amount of brightness for your shower or bath. The pure white light will reveal the true colors of your surfaces materials and visually accentuate the steam within the bathing space.

Direct the flush-mounted lights to highlight and define specific areas and enhance the safety or visual effect. Their compact 1-1/4" diameter lens and integrated appearance make them perfect for ceiling and under bench applications. An IP68 immersion rating ensures that these lights are engineered and trusted as safe for use in wet areas.

Beauty and Durability

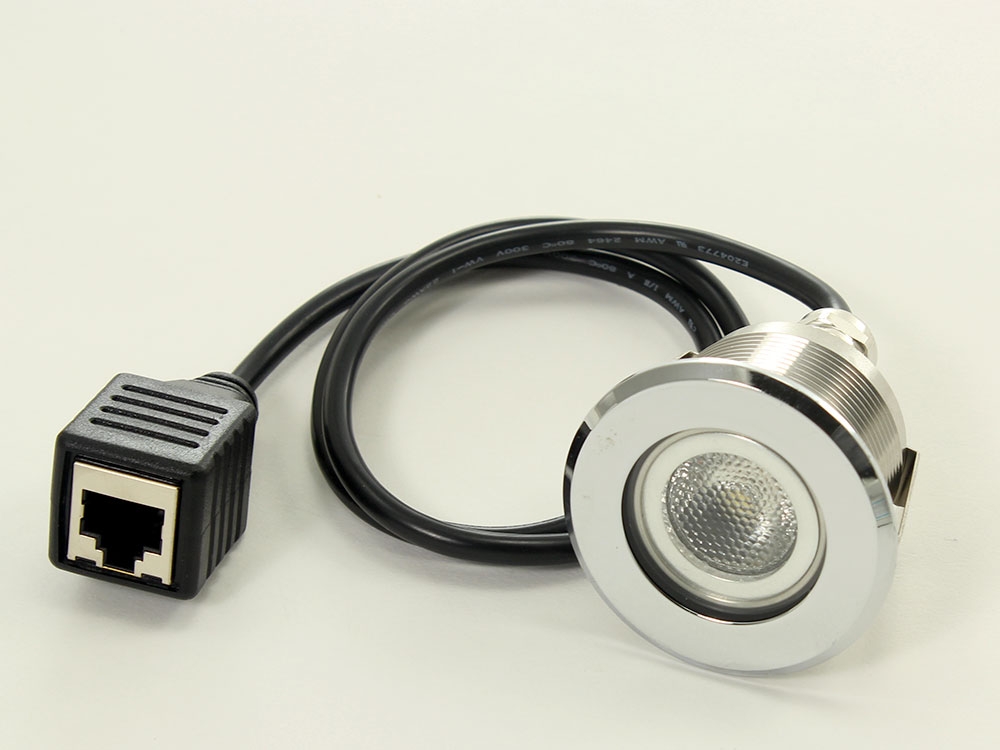

Spectrum 440 lights are impervious to corrosion and employ a polished sealed stainless steel bezel mounted to a robust stainless steel body. With rugged construction and 100,000-hour LED's, these lights will provide a lifetime of bathing splendor. Opt for either a tempered clear lens for more focused lighting or a frosted lens for a softer intensity.

Easy Installation
The Spectrum 440's transformer mounts easily and can be connected to a switchable 120VAC power source. Power is converted to a low-voltage12V, and is routed in series to each light fixture using cable in lengths available from 25 to 100 feet. A single transformer may be used to connect up to eleven lights.

Meticulous planning and consideration has been taken to ensure easy and trouble-free and water-tight installation making the Spectrum 440 a must for new construction or rebuild projects. Tradesman and installers will appreciate the installation template supplied with each system for precise light placement every time. The compact size also provides a greater variety of placement options.

  • In-shower use, water tight, submersible
  • Suitable as primary light source
  • 11-Light capacity
  • Polished stainless steel bezel
  • Tempered frosted or clear glass lens
  • Water-safe materials
  • Stainless Steel Material
  • Luminous Flux 142 2.5%
  • Pure-white LED light
  • 35 Degree beam angle
  • Not dimmable
  • In-shower convenience
  • Uses conventional light switch
  • Safe operation
  • Ease of installation
  • Flush-mounted, low-profile design
  • IP68 immersible rating
  • One waterproof LED light fixture w/ clear lens
  • Installation template
  • Power box
  • Transformer
  • Relief strain
  • Cables
  • Silicone sealant
  • Connectors
  • Installation and operation manual
  • Limited warranty
Swipe horizontally to reveal full table content.
Model Spectrum 440
Swipe horizontally to reveal full table content.
Power Supply
Operating Voltage 120V AC
Output Voltage 700mA
Power Consumption 35W
Nominal Amperage 1.1 Amps
Dimensions 5-7/8”W x 1-1/8”H x 1-5/8”D
Swipe horizontally to reveal full table content.
Brilliance Fixture
Type LED Cool White (5650-6300K)
Operating Voltage 12VDC
Maximum Input Current 700mA
LED 1 x 3 Watt
Beam Angle 35 Degree Clear / 120 Degree Frosted
Lumens 142 Lumens max per fixture
Trim Finish Polished Stainless Steel
Housing Composition Stainless Steel
Lens Clear or Frosted, 1-1/4” Diameter
Lens Composition Tempered Glass
Rough-In Cut-Out 1-5/8” to 1-11/16"
Trim Dimension 2” Diameter, 1/8” Profile
Body Dimensions 1-15/32” Diameter x 1-7/8” Deep
Rating IP68
Certifications CE / RoHS / WEEE
Swipe horizontally to reveal full table content.
Enclosure
Housing Composition Steel, black powder coated finish
Dimensions 7-3/4”W x 1-7/8”H x 4-7/8”D
Standards NEMA 1
Listings ETL,UL
Swipe horizontally to reveal full table content.
Construction Template
Composition Steel, Galvanized, Gauge 22
Dimensions 15-1/8”L x 1/32”H x 3”W
