Kohler K-5548-K1
Invigoration DTV+ Series Steam Adapter Kit
The Kohler K-5548-K1 DTV+ Steam Adapter kit enables the DTV+ system to control an Invigoration® Series steam generator, bringing steam to your steam shower space in just 60 seconds at the push of a button. The kit also includes a remote temperature sensor and a steam head with aromatherapy well, allowing you to add aromatic scents to enhance your steam experience.
DTV+ shower components (sold separately).
This steam adapter kit enables the DTV+ system to control an Invigoration® Series steam generator, bringing steam to your shower space in just 60 seconds at the push of a button. The kit also includes a remote temperature sensor and a steam head with aromatherapy well, allowing you to add aromatic scents to enhance your steam experience. Requires DTV+ shower components (sold separately).
Not compatible with other manufacturers' steam generators.
- Allows Kohler Invigoration® Steam Generator to be controlled via the DTV+ Showering System.
- For use with Kohler Invigoration® Steam Generators between 5 and 15 kilowatts.
- Adjustable temperature settings between 90°F and 125°F.
- Aromatherapy reservoir on steam heads.
- Circular steam head design allows steam to be evenly dispensed throughout shower.
- 20-minute safety shutoff.
- Quick-connect RJ-12 cord and connector for simplified installation and service.
- Not compatible with other manufacturers' steam generators.
- 5 Year Limited Warranty
- Steam head
- Temperature sensor
- Adapter
- 10" Straight Cable
- 16" Crossover Cable
- 6" Straight Cable
- DTV Harness
- Dual Connector
- Gasket
- Mounting Arm
- Terminator
- Thermostor Harness
- 5 Year Limited Warranty
| Model | K-5548-K1 |
|---|---|
| Width | 3.25" (83mm) |
| Depth | 0.75" (19mm) |
| Height | 4" (102mm) |
| Weight | 7 lbs |

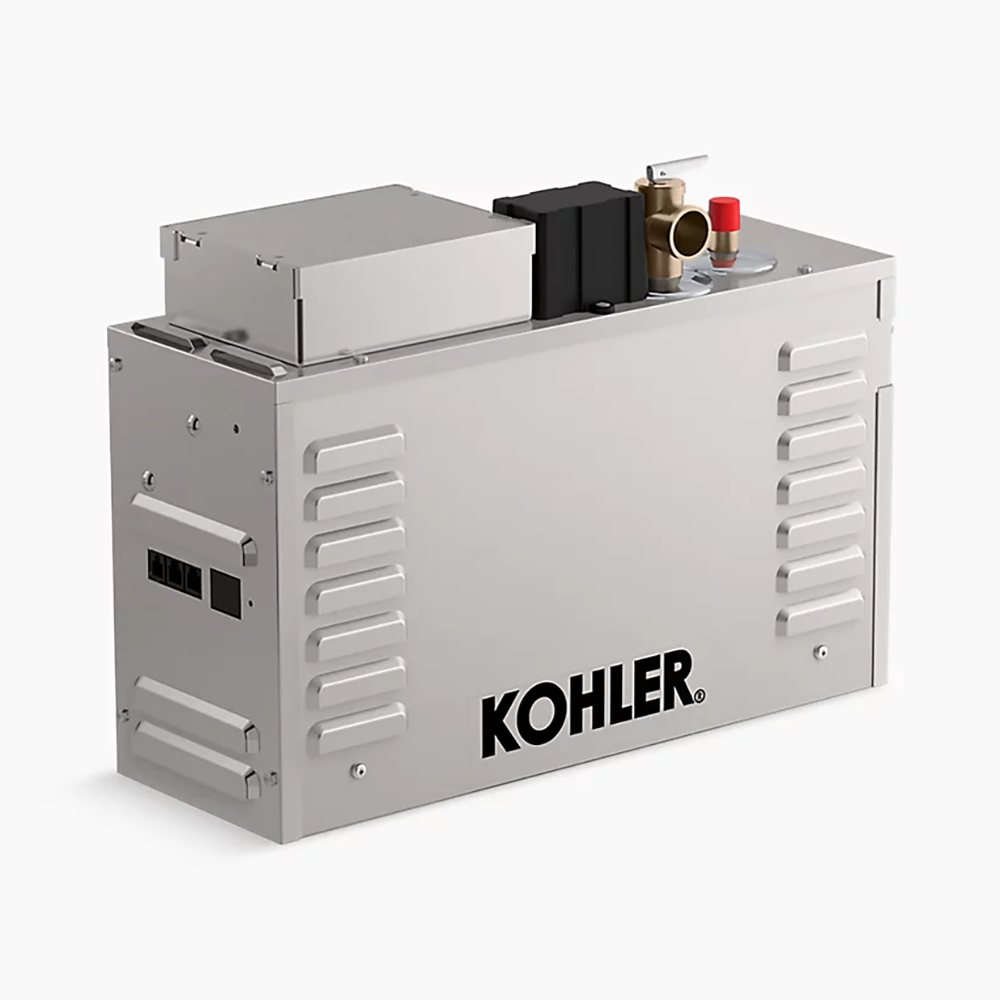

The Kohler Invigoration K-32324-NA 5kW steam shower generator features Kohler's Fast Response Technology and is engineered to power steam rooms up to 84 cubic feet (CF).
Notable enhancements on Kohler's Version 2.0 Invigoration Series steam shower generators include a new precision water level control that optimizes steam performance and unit durability, as well as revised ventilation which allows simplified installation and zero clearance on one side.
Required control kit, adapter kit, and drain pan sold separately.
DTV+ is Kohler's most advanced showering system, making your bathing experience fully immersive. Using water, steam, lighting, and music to give you multi-sensory relaxation. Each elemental component can be personalized for your needs and a simple touchscreen interface controls it all. The DTV+ system requires one interface, at minimum, a K-99694 mounting bracket, and the K-99695 system controller.
Required items sold separately

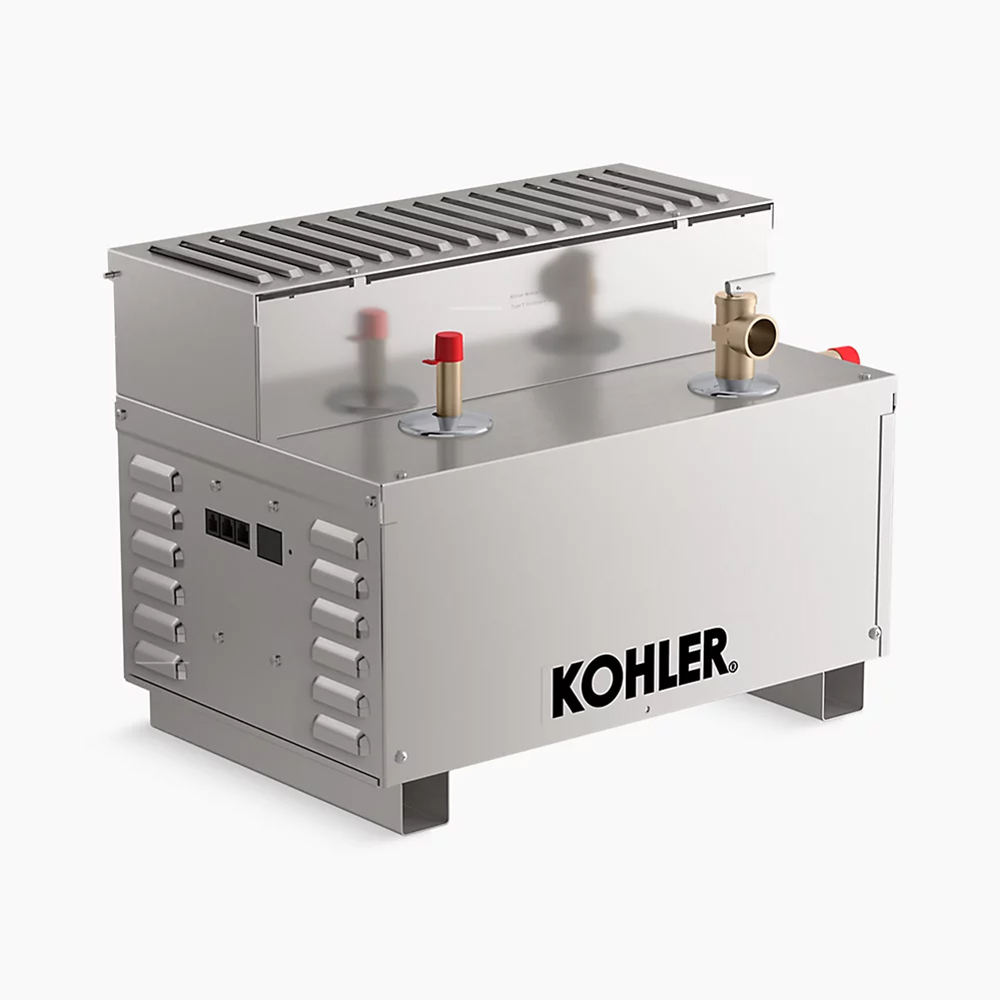

The Kohler Invigoration K-32328-NA 13kW steam shower generator features Kohler's Fast Response Technology and is engineered to power steam rooms up to 447 cubic feet (CF).
Notable enhancements on Kohler's Version 2.0 Invigoration Series steam shower generators include a new precision water level control that optimizes steam performance and unit durability, as well as revised ventilation which allows simplified installation and zero clearance on one side.
Required control kit, adapter kit, and drain pan sold separately.
