Brizo Mystix™ 20kW Generator
Mystix™ TSG20 Steam Shower Generator 20kW
The secret to uncompromising relaxation is the Mystix™ 20kW Steam Shower Generator. Indulge your senses right in the comfort of your home with different Voltage and Phase options to choose from. Equipped with a suite of advanced technologies, this generator regulates the steam environment to ensure the ideal conditions are met at every moment.
Required Control Package Sold Separately
Required Dedicated Circuit
The secret to uncompromising relaxation is the Mystix™ 20kW Steam Shower Generator. Indulge your senses right in the comfort of your home with different Voltage and Phase options to choose from. It features intelligent control communication giving you access to the Mystix™ Elemental and Transcendent Experience Controls and Steam Heads. Equipped with a suite of advanced technologies, this generator regulates the steam environment to ensure the ideal conditions are met at every moment with no hotspots, temperature spikes or uncomfortable fluctuations.
- Can join two to four generators together for larger spaces
- Compact design permits installation in a vanity, closet, basement, insulated attic
- Intelligent control communication
- Microprocessor based diagnostics and LED indication
- Proportional Steam Technology disperses steam evenly for consistent temperature
- SteadySteam™ Technology maintains a consistent temperature and continually adjusts
- RapidMist™ Technology produces quick response steam that takes about a minute for the shower to heat up and can turn on/off using the Control
- Operates with only 8CH, 8CB, 8CN-600 Series Controls and Steam Heads and optional 8CN-220 Series Exterior Control
- Optional Extension Cords sold separately
- Optional Generator Pans and Auto Drains sold separately
- UL Listed
- 20kW Steam Shower Generator
- 35' ft Cable
- Installation and Operation Manual
- Limited Lifetime Warranty
| Model | 8GE-TSG20 |
|---|---|
| Generator | |
| Construction Material | Stainless Steel |
| Installation Type | Hardwired |
| Maximum Cubic Feet | 900 |
| Kilowatt Rating | 20kW |
| Volts | See Technical Specifications Chart |
| Phase | See Technical Specifications Chart |
| Amps | See Technical Specifications Chart |
| Line Fuse | See Technical Specifications Chart |
| Water Supply Connection | 3/8" Compression Fitting, 120 PSI Max |
| Steam Outlet Connection | 3/4" Brass NPT Male Thread |
| Pressure Relief Valve Connection | 3/4" Brass NPT Female Thread |
| Drain Outlet Connection | Capped 1/2" Brass NPT Male Thread |
| Generator Max Temperature | 104° F |
| Generator Fuel Type & Power | Electrical |
| Product Dimensions | 19"L x 11.13"W x 17"H |
| Shipping Weight | 50 lbs |
Tailor your steam shower to your exact preferences. This set is the epitome of lavish simplicity with different standard and Lumicoat™ Finishes to choose from. The Mystix™ Elemental Experience Steam Set combines a Square Control and a Bilateral Steam Head.
Steam Generator Sold Separately
Tailor your steam shower to your exact preferences. This set is the epitome of lavish simplicity with different standard and Lumicoat™ Finishes to choose from. The Mystix™ Elemental Experience Steam Set combines a Round Control and a Bilateral Steam Head.
Steam Generator Sold Separately
Craft a holistic ambiance by combining all the benefits of steam with the digital interface and our full suite of spa options. This set delivers an innovative look with different standard and Lumicoat™ Finishes to choose from. The Mystix™ Transcendent Experience Steam Set combines a Digital Control and a Bilateral Steam Head.
Steam Generator Sold Separately
Tailor your steam shower to your exact preferences. This set is the epitome of lavish simplicity with different standard and Lumicoat™ Finishes to choose from. The Mystix™ Elemental Experience Steam Set combines a Square Control and a Linear Square Steam Head.
Steam Generator Sold Separately
Tailor your steam shower to your exact preferences. This set is the epitome of lavish simplicity with different standard and Lumicoat™ Finishes to choose from. The Mystix™ Elemental Experience Steam Set combines a Round Control and a Contemporary Round Steam Head.
Steam Generator Sold Separately
Craft a holistic ambiance by combining all the benefits of steam with the digital interface and our full suite of spa options. This set delivers an innovative look with different standard and Lumicoat™ Finishes to choose from. The Mystix™ Transcendent Experience Steam Set combines a Digital Control and a Contemporary Square Steam Head.
Steam Generator Sold Separately

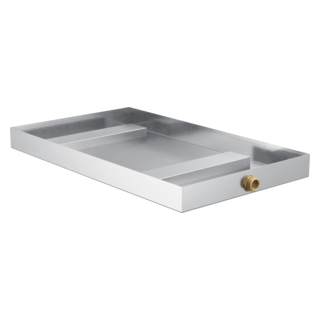

The Extra Large Generator Pan provides elevated support for the generator and collects excess water. Start each steam shower with fresh water as the auto drain opens automatically to flush the system prior to the next use. This system is designed for the Mystix™ TSG Series Steam Generators (20-30kW).
The Extra Large Generator Pan provides elevated support for the generator and collects excess water in rare cases of leakage. This pan is designed for the Mystix™ TSG Series Steam Generators (20-30kW).
The Auto Drain will open automatically to flush the system prior to the next use making your life a whole lot easier. This drain is designed for the Mystix™ TSG Series Steam Generators.
